JS750 Twin-shaft Concrete Mixer

JS750 Twin-shaft Concrete Mixer

BrandHua Ning
Power39kw
Weight5500kg
Dimension(L*w*h)3110×2620×2580mm
24-Hour Online Service
Global Service Network
Technical Solutions

Specifications

Overview:
JS750 Twin Shaft Forced Concrete Mixer is generally used to mix dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.
It not only can work independently but also can work together with PLD series concrete batching machine to form simple concrete mixing plant.
Besides, it also acts as the main machine for the corresponding mixing plant.
This efficient machine is widely applied in all kinds of large, middle, and prefabricated concrete plants, highways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.

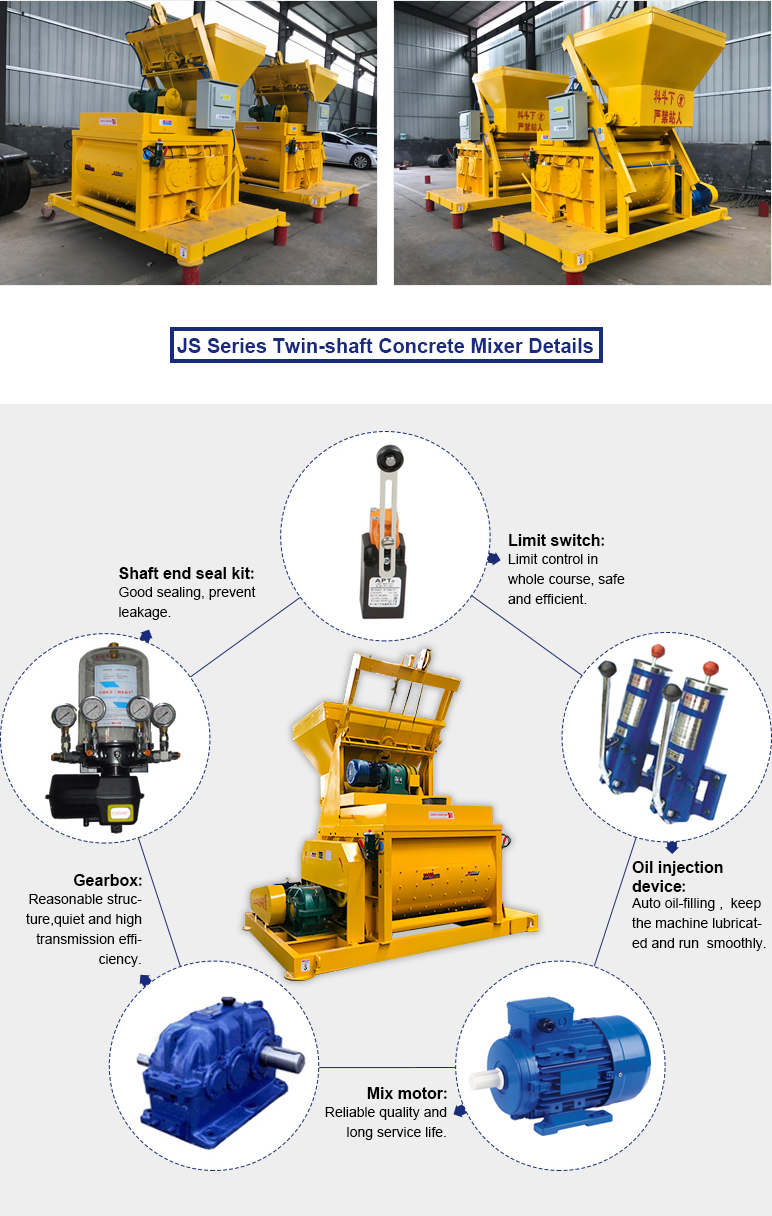

Features:
High automation degree and high mixing quality
Double mixing blades ensure high mixing efficiency and even mixing effect
Automatic lubrication system ensures good lubrication effect and reduces maintenance cost
Longer service life of scaleboard and blades
Energy saving and environment friendly
Pneumatic or hydraulic discharge

Application for HZS35 Concrete Batching Plant.



Technical

Model JS750
Discharge Capacity (L) 750
Feed Capacity (L) 1200
Productivity (m3/h) ≥35
Max. Aggregate Size (mm) ≤40/60
Work Cycle Time (s) 72
Mixing Blades Speed (r/min) 29.6
Qty 2×7
Mixing Motor (kw) 30
Winch Motor (kw) 7.5
Pump Motor (kw) 1.5
Dimensions  (L × W × Hmm) 3110×2620×2580
Total Weight(kg) 5500
