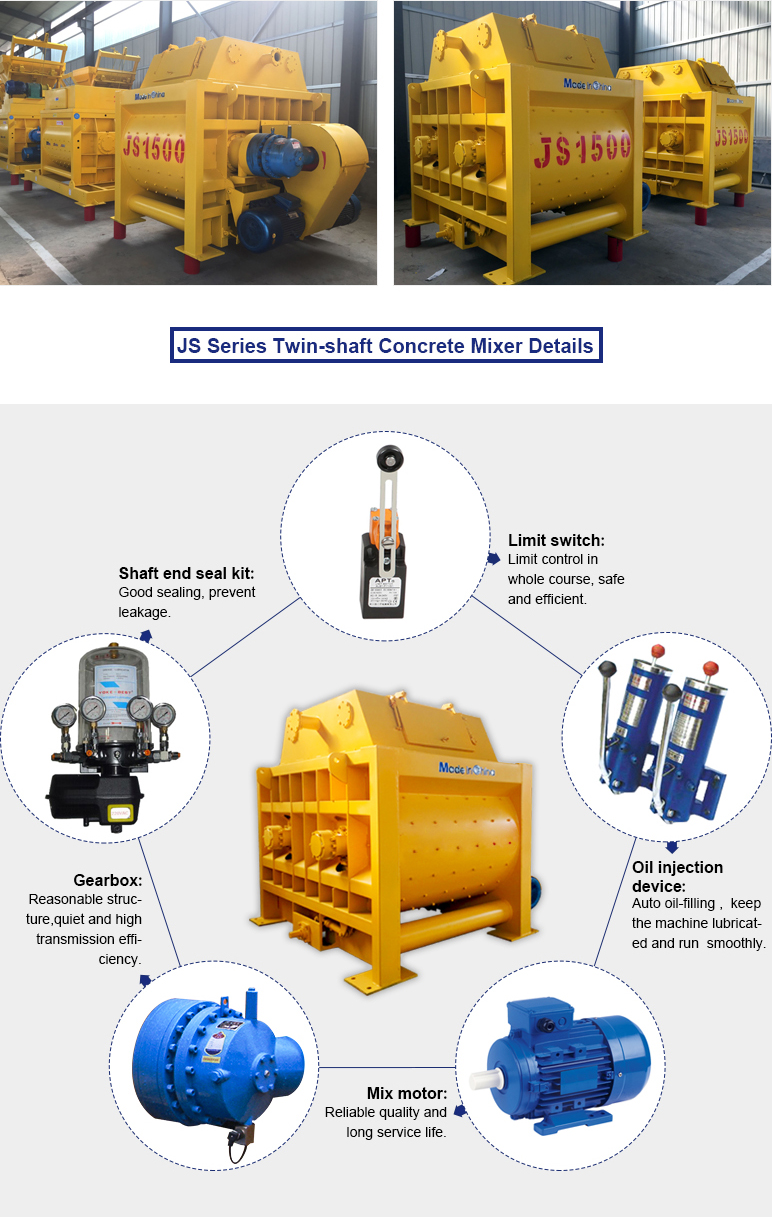

JS1500B Twin-shaft Concrete Mixer

JS1500B Twin-shaft Concrete Mixer

BrandHua Ning
Power60kw
Weight3000*2400*2074mm
Dimension(L*w*h)6500kg
24-Hour Online Service
Global Service Network
Technical Solutions

Specifications

Overview:
Hua Ning JS1500B Twin-Shaft Forced Concrete Mixer without Lifting Hopper is generally used to mix dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.
The Electric Twin-Shaft Concrete Mixer not only can work independently but also can work together with PLD series concrete batching machine to form simple concrete mixing plant.
Besides, it also acts as the main machine for the corresponding mixing plant.
This efficient machine is widely applied in all kinds of large, middle, and prefabricated concrete plants, highways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.

Features:
High automation degree; high mixing quality
Double mixing blades ensures high mixing efficiency and even mixing effect
Automatic lubrication system ensures good lubrication effect and reduces maintenance cost
Longer service life of scaleboard and blades
Energy saving and environment friendly
Pneumatic or hydraulic discharge

Application for HZS90 Concrete Batching Plant



Technical

Model JS1500B
Discharge Capacity (L) 1500
Feed Capacity (L) 2400
Productivity (m3/h) ≥90
Max. Aggregate Size: Pebble/Gravel (mm) ≤80/100
Work Cycle Time (s) 60
Mixing Blades Speed (r/min) 24.5
Quantity 2*7
Mixing Motor (kw) 2*30
Winch Motor (kw) --
Pump Motor (kw)
Dimensions
(L × W × Hmm)
3000*2400*2074
Total weight(kg) 6500
