Specifications
Overview:
Hua Ning JS3000 Twin-Shaft Forced Concrete Mixing Machine is generally used to mix dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.
It not only can work independently but also can work together with PLD series concrete batching machine to form simple concrete mixing plant.
Besides, it also acts as the main machine for the corresponding mixing plant.
This efficient machine is widely applied in all kinds of large, middle, and prefabricated concrete plants, highways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.
Features:

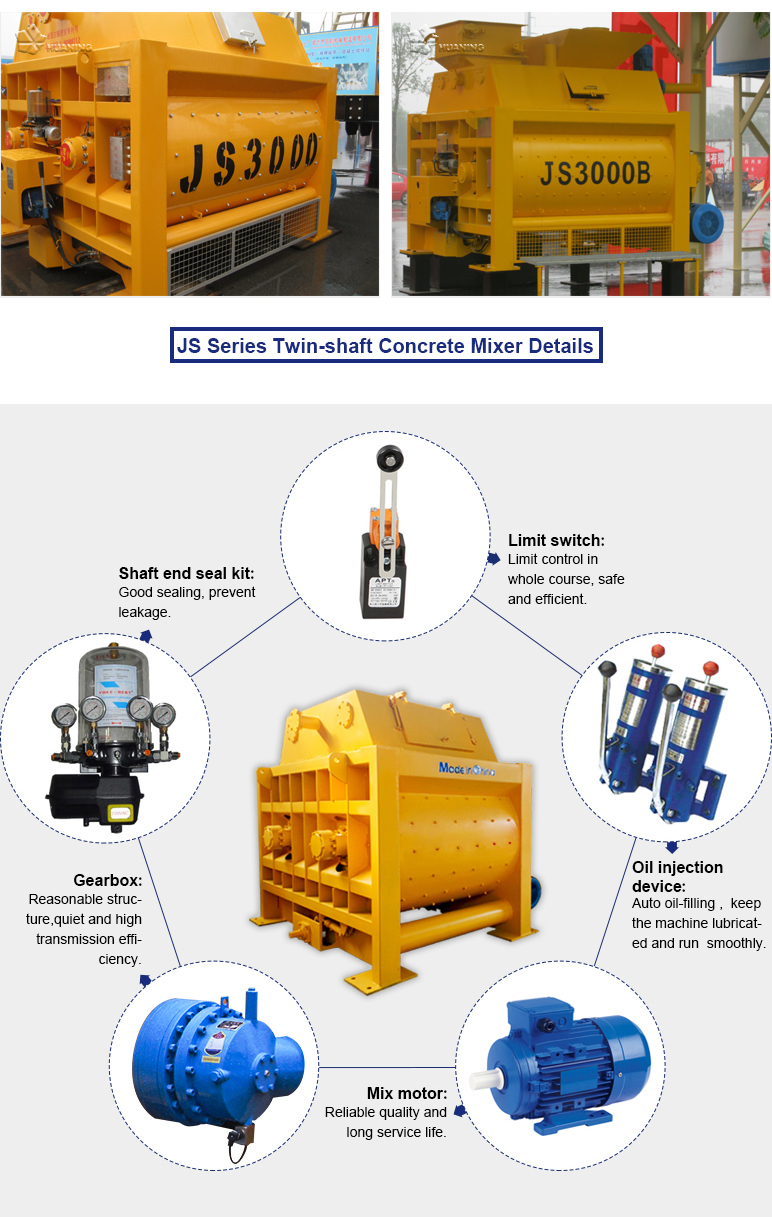

High automation degree; high mixing quality
Double mixing blades ensures high mixing efficiency and even mixing effect
Automatic lubrication system ensures good lubrication effect and reduces maintenance cost
Longer service life of scaleboard and blades
Energy saving and environment friendly
Pneumatic or hydraulic discharge
Technical
|
Model |
JS3000 |
|
Discharge Capacity (L) |
3000 |
|
Feed Capacity (L) |
4800 |
|
Productivity (m3/h) |
≥180 |
|
Max. Aggregate Size (mm) |
≤100/120 |
|
Work Cycle Time (s) |
60 |
|
Mixing Blades |
Speed (r/min) |
21 |
|
Quantity |
2×10 |
|
Mixing Motor (kw) |
2×55 |
|
Winch Motor (kw) |
-- |
|
Pump Motor (kw) |
-- |
Dimensions
(L × W × Hmm) |
4050× 2680 ×2125 |
|
Total weight(kg) |
9200 |
