JS2000 Twin-shaft Concrete Mixer

JS2000 Twin-shaft Concrete Mixer

BrandHua Ning
Power74kw
Weight3500×2400×2125mm
Dimension(L*w*h)7500kg
24-Hour Online Service
Global Service Network
Technical Solutions

Specifications

Overview:
Hua Ning JS2000 Double Shaft Forced Concrete Mixer is the twin-shaft forced mixing machine and generally used to mix dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.
The Twin-Shaft Concrete Mixer Machine not only can work independently but also can work together with PLD series concrete batching machine to form simple concrete mixing plant.
Besides, the Twin-Shaft Concrete Mixer Machine also acts as the main machine for the corresponding mixing plant.
This efficient Twin-Shaft Concrete Mixer Machine is widely applied in all kinds of large, middle, and prefabricated concrete plants, highways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.

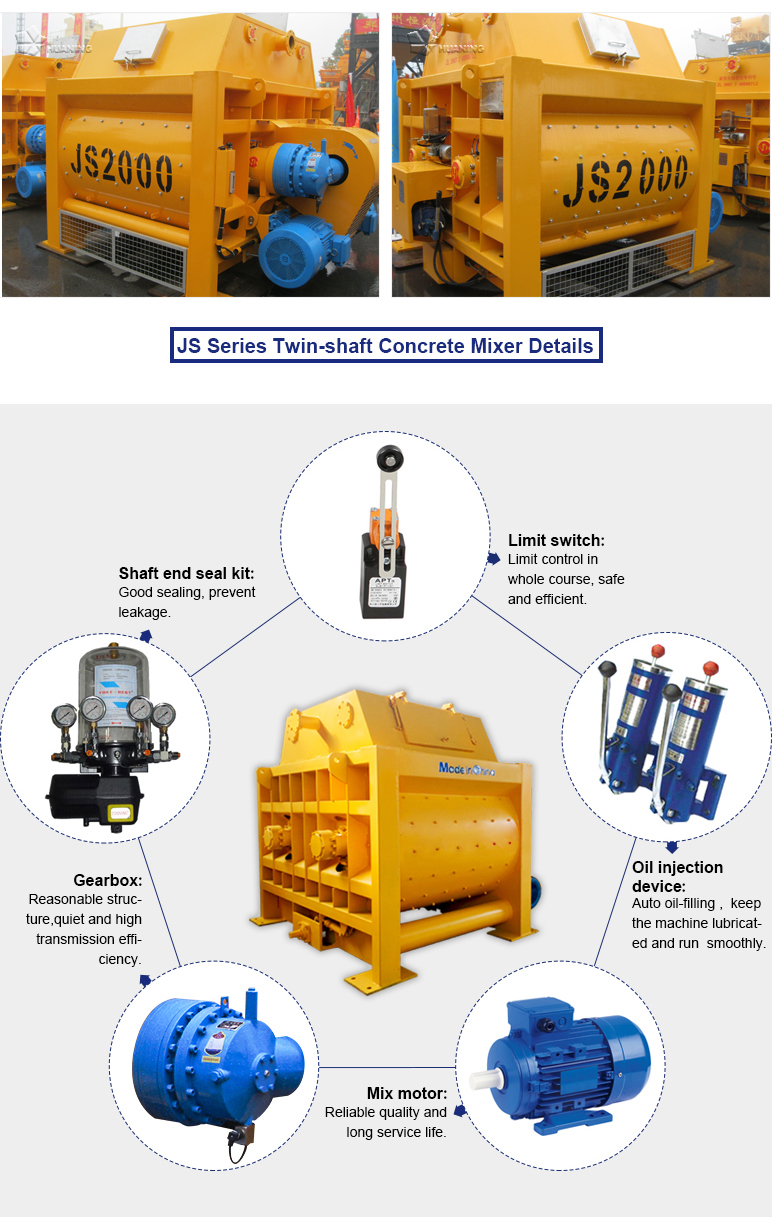

Features:
High automation degree; high mixing quality
Double mixing blades ensures high mixing efficiency and even mixing effect
Automatic lubrication system ensures good lubrication effect and reduces maintenance cost
Longer service life of scaleboard and blades
Energy saving and environment friendly
Pneumatic or hydraulic discharge

Application for HZS120 Concrete Batching Plant



Technical

Model JS2000
Discharge Capacity (L) 2000
Feed Capacity (L) 3200
Productivity (m3/h) ≥120
Max. Aggregate Size: Pebble/Gravel (mm) ≤80/100
Work Cycle Time (s) 60
Mixing Blades Speed (r/min) 24.5
Quantity 2×8
Mixing Motor (kw) 2×37
Winch Motor (kw) --
Pump Motor (kw) --
Dimensions
(L × W × Hmm)
3500×2400×2125
Total weight(kg) 7500
