HZS90 Concrete Batching Plant

HZS90 Concrete Batching Plant

BrandHua Ning
Power145kw
Weight--
Dimension(L*w*h)--
24-Hour Online Service
Global Service Network
Technical Solutions
Specifications Technical Date Message

Specifications

Detailed Information
· Maximum Productivity: 90 m3/h;
· Discharge Height: 3.8 m, can be customized;
· Main Machine: JS1500 twin-shaft forced concrete mixer
· Batching Machine: PLD2400 with the weighing hopper capacity reaching 2400 L.

Brief Introduction

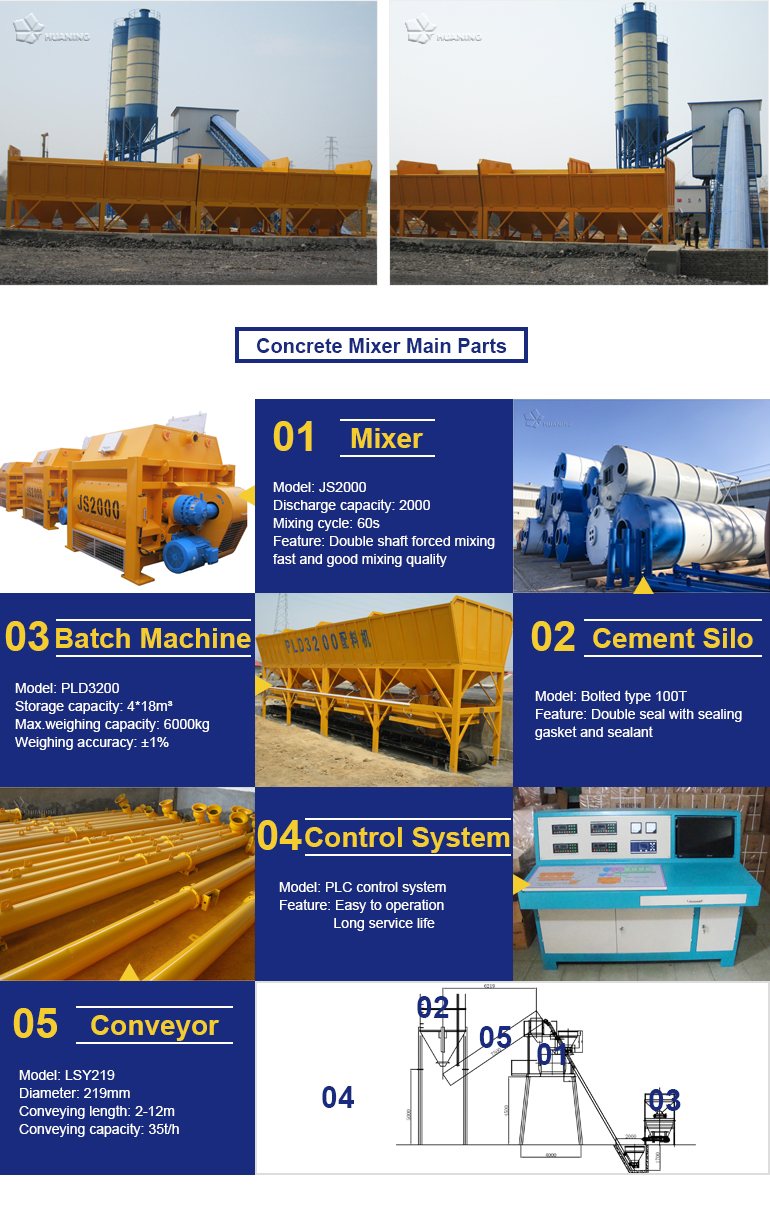

· Pan Mixer Concrete Batching Plant includes the cement silo, screw conveyor, belt conveyor, PLD batching machine, twin-shaft forced concrete mixing machine, computer controlling and measuring system, etc.
· And also there are manual control system, automatic head-drop compensation and aggregate moisture compensation.
· The Pan Mixer Concrete Batching Plant can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on. Working as the concrete mixing equipment, it can meet the requirements for different forms and specifications.

Characteristics
· The concrete mixer JS1500 (The main machine for the mixing plant) has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniformity.
· The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts.
· Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability;
· The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity;
· The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.


Technical

Model HZS90
The Whole Station Max. Productivity 90 m3/h
Discharge Height 3.8 m
Working Cycle 60 s
Dimension (LxWxH) 58555x12376x18704 mm
Power 145 kw
Concrete Mixer JS1500
Batching Machine PLD2400
Pneumatic System Air Compressor Model 1.8-7
Nominal Displacement 1.67 m3/min
Rated Discharge Pressure 0.8 mpa
Motor power 11 kw
Measurement Accuracy of Weighing System Aggregate ±2%
Cement ±1%
Water ±1%
Admixture ±1%
