HZS180 Concrete Batching Plant

HZS180 Concrete Batching Plant

BrandHua Ning
Power260kw
Weight--
Dimension(L*w*h)--
24-Hour Online Service
Global Service Network
Technical Solutions

Specifications

Detailed Information
· Maximum Productivity: 180 m3/h;
· Total Power: 260 kw
· Discharge Height: 4 m, can be customized;
· Main Machine: JS3000 twin-shaft forced concrete mixer
· Batching Machine: PLD4800 with the weighing hopper capacity reaching 4800 L; with 4 hoppers.

Overview

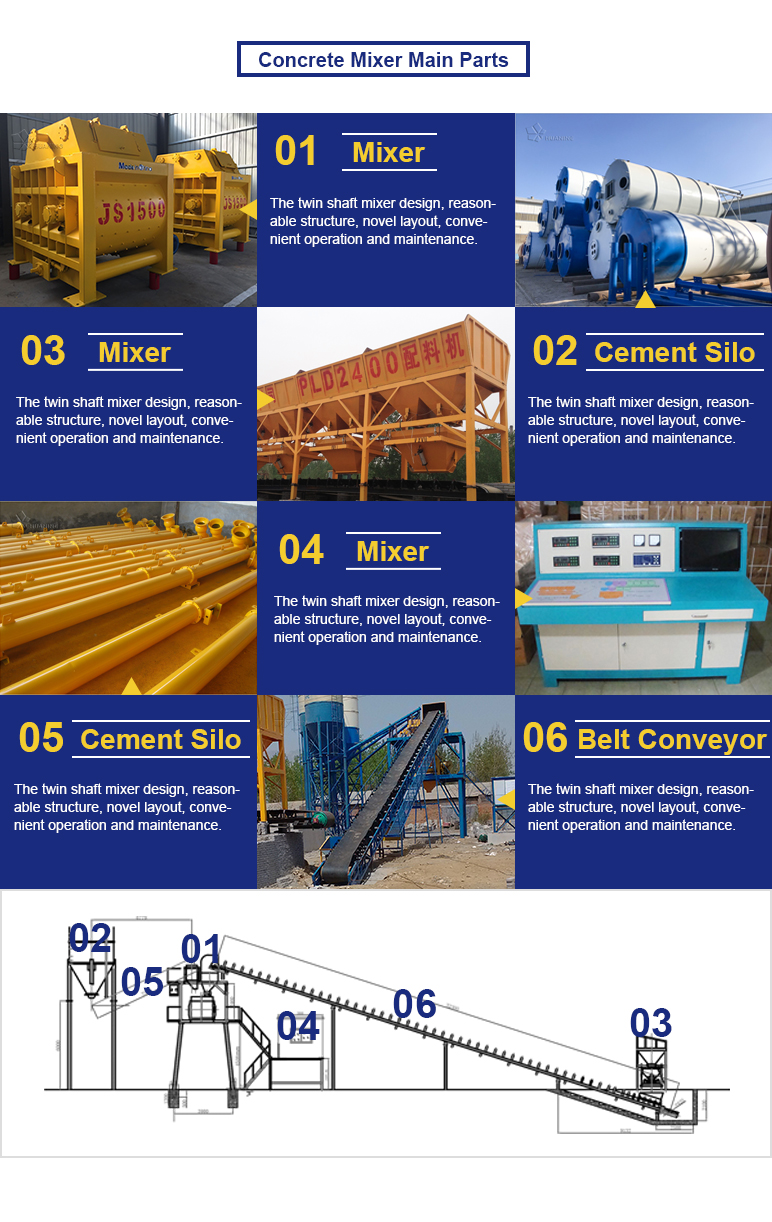

· HZS180 Concrete Batching Plant includes two rows of cement silos, screw conveyors, belt conveyor, batching machine PLD4800, twin-shaft forced concrete mixing machine JS3000, computer controlling and measuring system, etc.
· During running time, all work in the whole concrete mixing plant is controlled by the computer control room. It can supply the concrete simultaneously for two concrete transportation tanks. Meanwhile, new control technologies are adopted, such as electronic weighing, compact control, and digital display, etc.
· Electronic weighing is equipped with shock-absorber and automatic compensation function; and the measuring accuracy is thereby much improved.
Aggregate is fed by belt conveyor. Numerous advantages of HZS180 contributes to its wide applications in commercial concrete mixing companies and many construction organizations.


Technical

Model HZS180
The Whole Station Max. Productivity 180 m3/h
Discharge Height 4 m
Working Cycle 60 s
Dimension (LxWxH) 43538x24000x18704 mm
Power 260 kw
Concrete Mixer JS3000
Batching Machine PLD4800
Pneumatic system Air Compressor Model 1.8-7
Nominal Displacement 1.67 m3/min
Rated Discharge Pressure 0.8 mpa
Motor power 15 kw
Measurement Accuracy of Weighing system Aggregate ≤2%
Cement ≤1%
Water ≤1%
Admixture ≤1%
