HZS75 Concrete Batching Plant

HZS75 Concrete Batching Plant

BrandHua Ning
Power120kw
Weight--
Dimension(L*w*h)--
24-Hour Online Service
Global Service Network
Technical Solutions

Specifications

Product Description
· HZS75 Concrete Batching Plant includes the whole full-automatic concrete mixing machines, such as batching machine, mixer, electrical control system, etc.
· Meanwhile, the Ready-Mixed Concrete Mixing Plant is also equipped with independent manual control, automatic head-drop compensation, and aggregate moisture compensation. Thus, the expected production can be realized automatically.

Detailed Information
· Maximum Productivity: 75 m3/h;
· Discharge Height: 3.8 m;

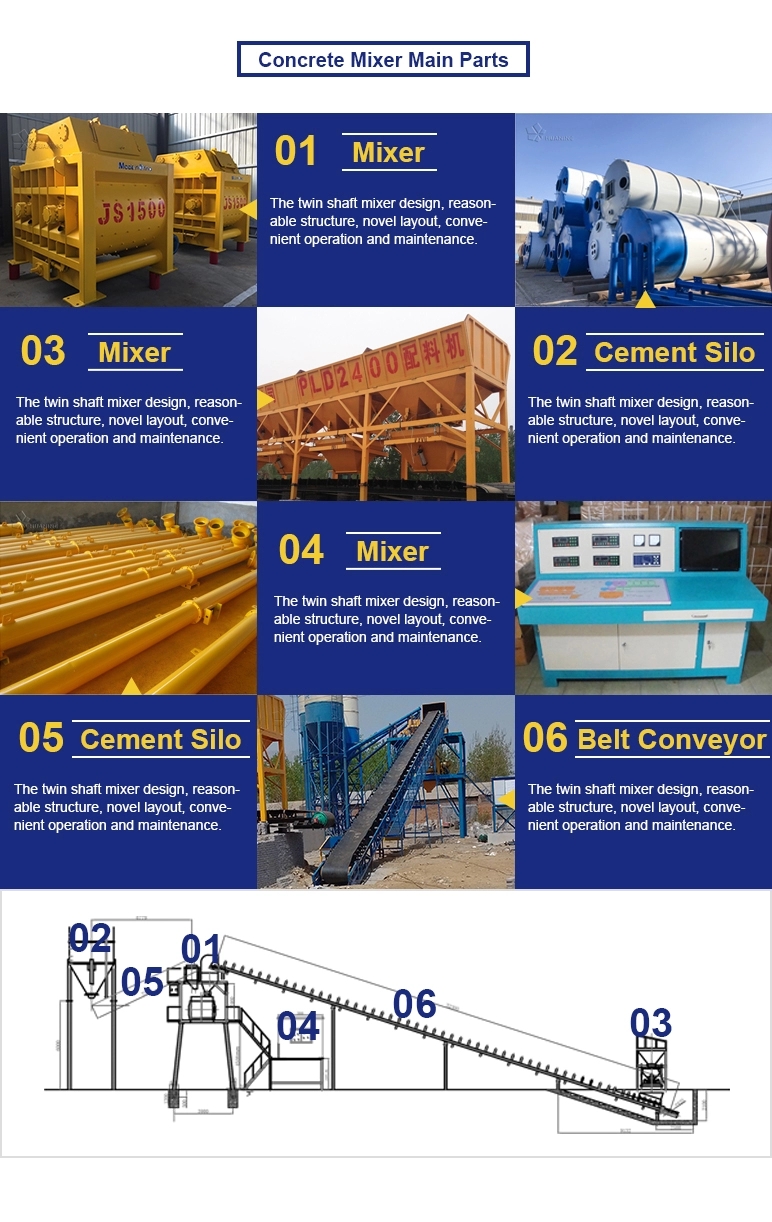

· Main Machine: JS1500 twin-shaft forced concrete mixer
· Batching Machine: PLD2400 with 3 or 4 hoppers


Technical

Model HZS75
The Whole Station Max. Productivity 75 m3/h
Discharge Height 3.8 m
Working Cycle 60 s
Dimension (LxWxH) 24350x10595x18704 mm
Power 120 kw
Concrete Mixer JS1500
Batching Machine PLD2400
Pneumatic system Air Compressor Model 1.8-7
Nominal Displacement 1.67 m3/min
Rated Discharge Pressure 0.8 mpa
Motor power 11 kw
Measurement Accuracy of Weighing system Aggregate ±2%
Cement ±1%
Water ±1%
Admixture ±1%
