HZS120 Concrete Batching Plant

HZS120 Concrete Batching Plant

BrandHua Ning
Power145kw
Weight--
Dimension(L*w*h)--
24-Hour Online Service
Global Service Network
Technical Solutions
Specifications Technical Date Message

Specifications

Detailed Information
Maximum Productivity: 120 m3/h;
Total Power: 210 kw;
Discharge Height: 4 m;
Main Machine: JS2000 twin-shaft forced concrete mixer
Batching Machine: PLD3200 with the weighing hopper capacity reaching 3200 L.

Product Description of

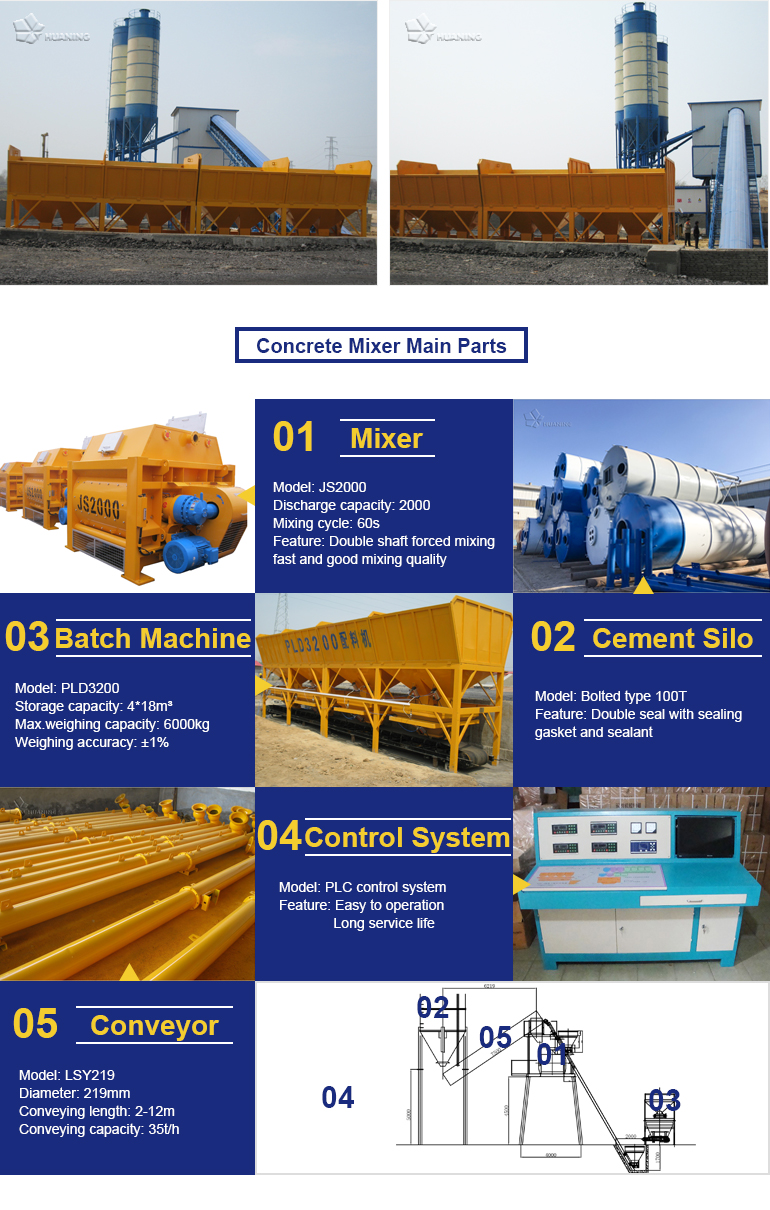

120m3/h Concrete Batching Plant  consists of twin-shaft mixer, batching machine, cement silo, screw conveyor, belt conveyor, computer controlling system.
The main machine JS2000 is forced and efficient concrete mixer and it can mix dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.
It presents many advantages: high productivity, short mixing time, nice appearance.
It is widely applied in large and middle building sites, highways, bridge project, and prefabricated concrete plant. It is ideal for producing commercial concrete.

Concrete Mixing System
JS2000 concrete mix is horizontal twin-shaft forced mixing machine with two advantages of independent performance or forming simple concrete mixing plants with PLD batching machines. It acts as the main machine for mixing plants. The twin-shaft mixer mixes evenly and efficiently. Its mixing quality is much higher.

Batching System
PLD3200 batching machine is automatic material distribution part used before the mixing process. It can fulfill automatically 3-6 kinds of material batching process like sand, stone and cement according to concrete ratio designed by user. This series of products adopt electronic weighing and digital display. It is characterized by accurate weighing, high batching accuracy, fast speed, strong controlling ability, simple operation.


Technical

Model HZS120
The Whole Station Max. Productivity 120 m3/h
Discharge Height 4 m
Working Cycle 60 s
Dimension (LxWxH) 60120x13700x18704 mm
Power 210 kw
Concrete Mixer JS2000
Batching Machine PLD3200
Pneumatic system Air Compressor Model 1.8-7
Nominal Displacement 1.67 m3/min
Rated Discharge Pressure 0.8 mpa
Motor power 15 kw
Measurement Accuracy of Weighing system Aggregate ≤2%
Cement ≤1%
Water ≤1%
Admixture ≤1%
