HZS60 Concrete Batching Plant

HZS60 Concrete Batching Plant

BrandHua Ning
Power105kw
Weight--
Dimension(L*w*h)--
24-Hour Online Service
Global Service Network
Technical Solutions

Specifications

Overview

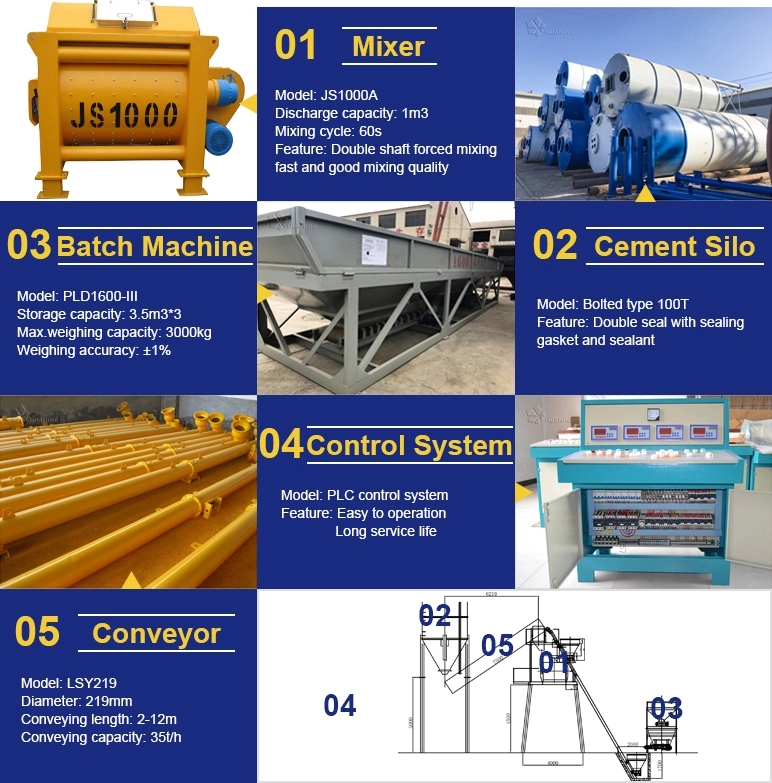

· Concrete Batching Plant 60m3/h includes the twin-shaft forced concrete mixer, cement silo, PLD batching machine, screw conveyor, computer controlling and measuring system, etc.
· Our Mix Concrete Plant also shows the functions of manual control system, automatic head-drop compensation and aggregate moisture compensation.

Features
· Maximum Productivity: 60 m3/h;
· Discharge Height: 3.8 m;
· Main Machine: JS1000 twin-shaft forced concrete mixer.
· Batching Machine: PLD1600 with the weighing hopper capacity reaching 1600 L.



Technical

Model HZS60
The Whole Station Max. Productivity 60 m3/h
Discharge Height 3.8 m
Working Cycle 60 s
Dimension (LxWxH) 28445x10595x18707mm
Power 105 kw
Concrete Mixer JS1000
Batching Machine PLD1600
Pneumatic system Air Compressor Model 1.5-7
Nominal Displacement 1.67 m3/min
Rated Discharge Pressure 0.8 mpa
Motor power 7.5 kw
Measurement Accuracy of Weighing system Aggregate ≤2%
Cement ≤1%
Water ≤1%
Admixture ≤1%
