HZS35 Concrete Batching Plant

HZS35 Concrete Batching Plant

BrandHua Ning
Power75kw
Weight--
Dimension(L*w*h)--
24-Hour Online Service
Global Service Network
Technical Solutions

Specifications

Overview

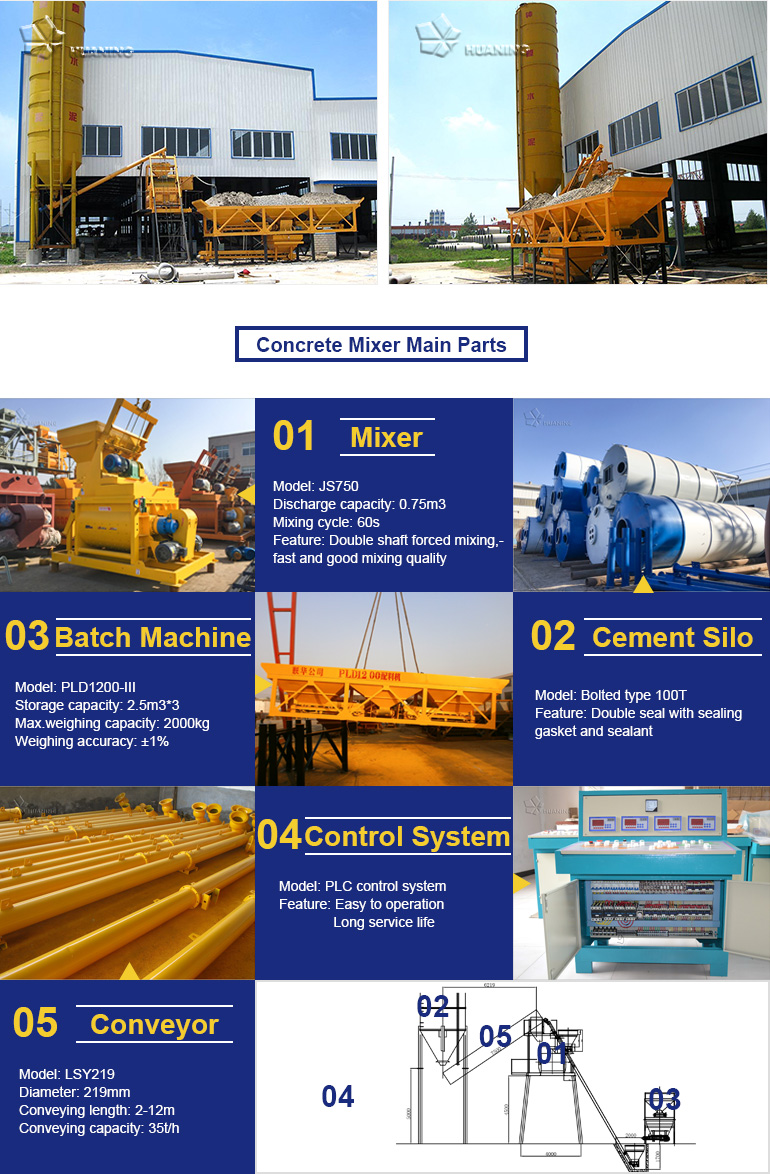

· HZS35 Concrete Batching Plant from Manufacturer is composed of feeding system, measuring (weighing) system, mixing system, electrical system and auxiliary equipments (such as air compressor, water pump etc.), featured by high-precision computer control. And also there are manual control system, automatic head-drop compensation and aggregate moisture compensation.
· The Concrete Batching Plant from Manufacturer can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on. Working as the concrete mixing equipment, it can meet the requirements for different forms and specifications.

Characteristics
· The concrete mixer JS750 (The main machine for the mixing plant) has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniformity.
· The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts.
· Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability;
· The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity;
· The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.


Technical

Model HZS35
The Whole Station Max. Productivity 35 m3/h
Discharge Height 1.5-3.8 m
Working Cycle 72 s
Dimension (LxWxH) 12922x13000x17245 mm
Power 75 kw
Concrete Mixer JS750
Batching Machine PLD1200
Pneumatic system Air Compressor Model 1.0-7
Nominal Displacement 1.67 m3/min
Rated Discharge Pressure 0.8 mpa
Motor power 5.5 kw
Measurement Accuracy of Weighing system Aggregate ±2%
Cement ±1%
Water ±1%
Admixture ±1%
