HZS25 Concrete Batching Plant

HZS25 Concrete Batching Plant

BrandHua Ning
Power50.25kw
Weight--
Dimension(L*w*h)--
24-Hour Online Service
Global Service Network
Technical Solutions

Specifications

Overview

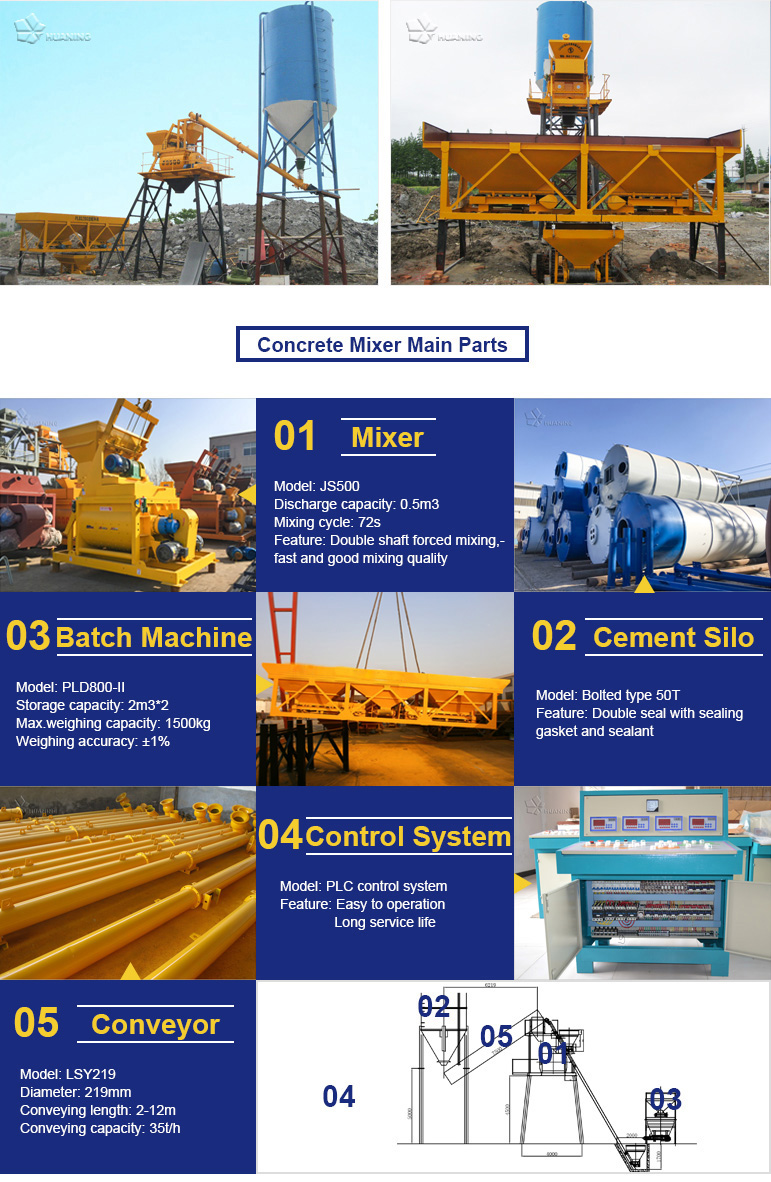

HZS25 concrete batching plant is mainly composed 0f PLD 800 batchingmachine, JS500 forced concrete machine, JS500 concrete mixer, cement silos, automatic computer control system, electronic weighing, belt conveyor and others.
It can mix fluidity concrete, plastic concrete, hard concrete and other proportioning concrete.
The Fixed Concrete Batching Plant can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on.

Features
Aggregate adopts Batching machine, accurate measurement and high production efficiency.
Water supply system adopts the principle of pump pressure, the water flow speed spray evenly.
Water, concrete, water admixtures adopt electronic weighing, ingredients of high precision.
Adopt JS500 twin-shaft forced concrete mixer(the main machine of the concrete batching plant) with high mixing quality and productivity.
Advanced central control system with stable and high-precision compounding, latest calculation method, effective control of error; fault diagnosis system help users rule out trouble; the flexible storage and can of formulas, users can call formula at any time.


Technical

Model HZS25
The Whole Station Max. Productivity 25 m3/h
Discharge Height 1.5-3.8 m
Working Cycle 72 s
Dimension (LxWxH) 11693x13060x17245 mm
Power 50.25 kw
Concrete Mixer JS500
Batching Machine PLD800
Pneumatic system Air Compressor Model 1.0-7
Nominal Displacement 1.67 m3/min
Rated Discharge Pressure 0.8 mpa
Motor power 5.5 kw
Measurement Accuracy
of Weighing system
Aggregate ±2%
Cement ±1%
Water ±1%
Admixture ±1%
