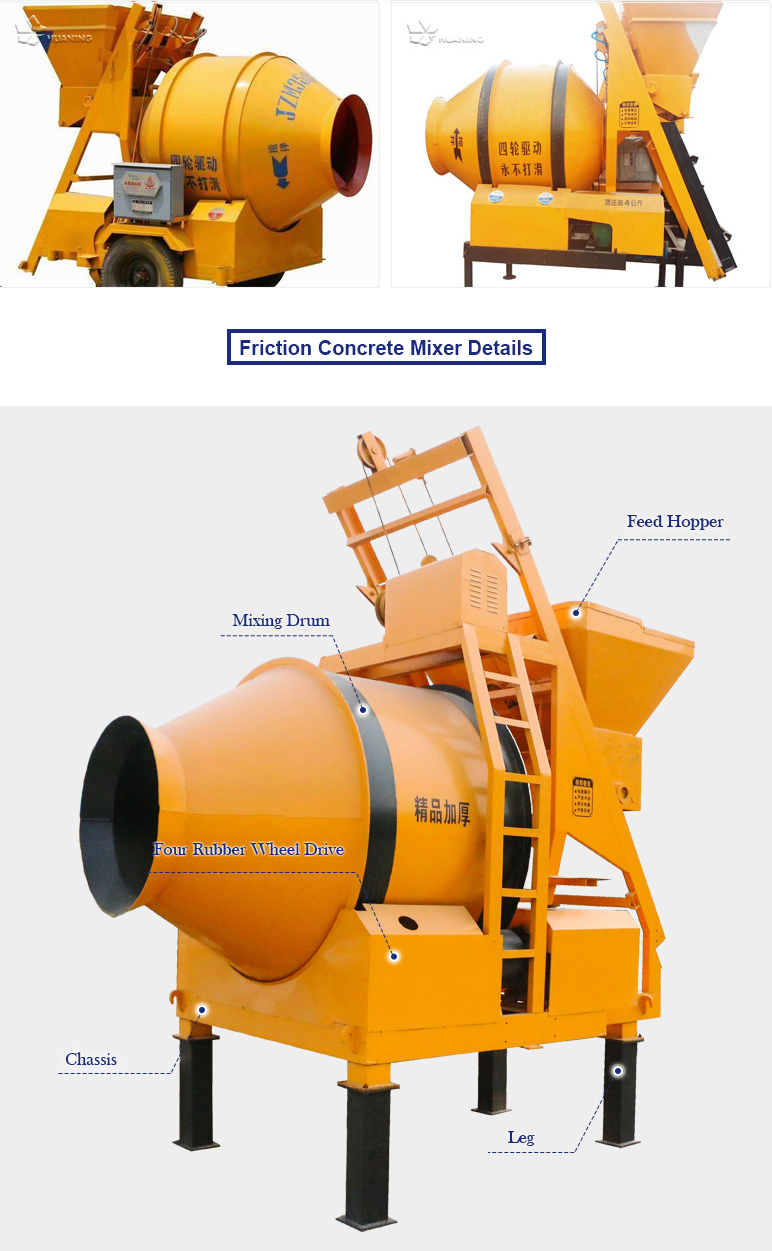

JZM500 Friction-driven Drum Concrete Mixer

JZM500 Friction-driven Drum Concrete Mixer

BrandHua Ning
Power13.75kw
Weight2400kg
Dimension(L*w*h)3500x2200x3200mm
24-Hour Online Service
Global Service Network
Technical Solutions

Specifications

Overviews:
Hua Ning JZM500 Concrete Mixer is a nice choice for accomplishing small scale concrete construction jobs. HUANING JZM series Concrete Mixer working noise is small, can achieve indoor operation. With smaller size and light weight, portable mixers can be moved with ease. Portable mixer provides a choice for small amount onsite concrete mixing work.

Advantages:
1. Easy to be moved between construction sites
2. Easy to operate with low energy consumption
3. Optimized structure design makes portable mixers flexible and reliable
4. Diesel engine mixer is available, which is our special design for clients in regions lacking of electricity
5. Even mixing effect and durable performance
6. Spare parts are available during the year

Technical

Model JZM500
Discharging Capacity (L) 500
Feeding Capacity (L) 800
Productivity (m3/h) 18~20
Rotation Speed (r/min) 13
Max. Aggregate Size (mm) 60~80
Water Precision Error≤2%
Mixing Motor (kw) 7.5
Lifting Motor (kw) 5.5
Pump Motor (kw) 0.75
Max. Dragging Speed (km/h) 20km/h
Tyre Size 7.50-16
Total Weight (kg) 2400
Dimension (mm) 3500x2200x3200
