Specifications
Brief Introduction

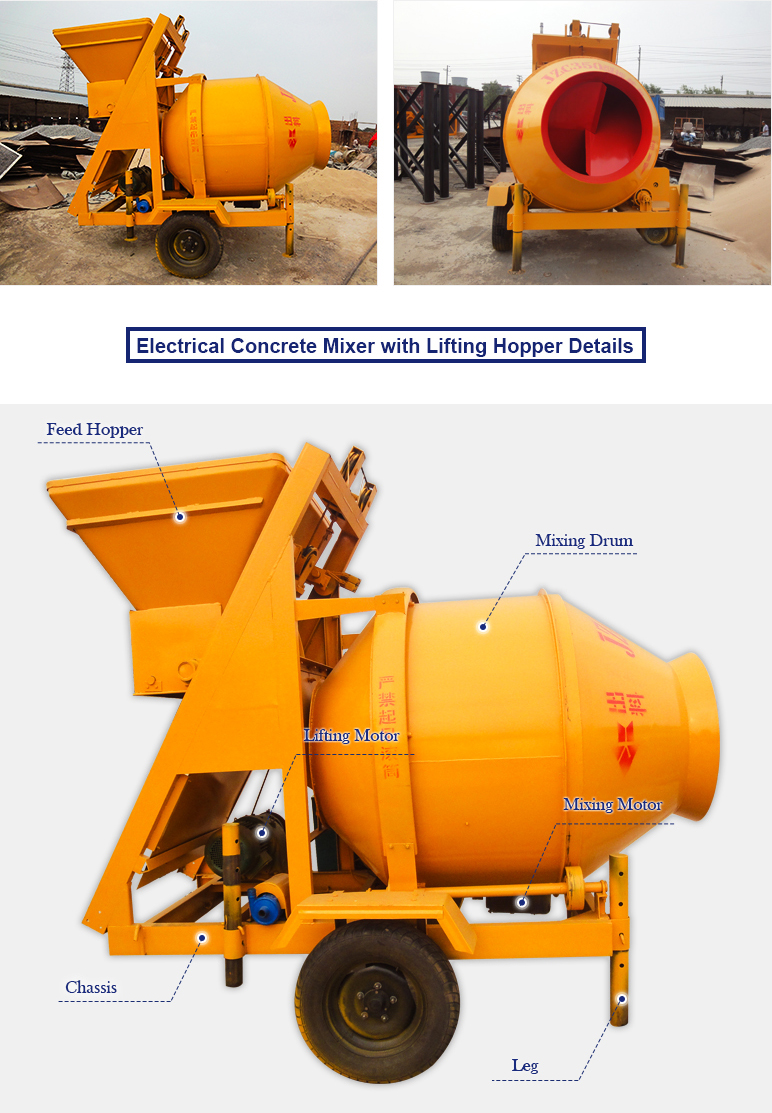

JZC350B lifting concrete mixer belongs to the self-falling concrete mixer with double-cone mixing drum forward mixing and reverse discharging. It can mix plastic and semi-dry concrete. The mixing drum of the machine is rotated by the ring gear.
Applications
Applicable to general construction sites, roads, bridges, hydropower projects and small and medium concrete component factories.
Advantages
1.Reliable transmission, low noise, low energy consumption, compact structure, stable operation, simple operation, good mixing quality and high productivity.
2.Long service life of blades and scaleboard.
3.Hopper lifting way:Orbital lifting.
Technical
|
Model |
JZC300 |
JZC350 |
|
Discharge Capacity (L) |
300 |
350 |
|
Feeding Capacity (L) |
480 |
560 |
|
Productivity (m3/h) |
9-12 m3 /h |
10-14 |
|
Rotation Speed (r/min) |
17 r/min |
14 |
|
Max. Aggregate Size (mm) |
60 mm |
60 |
|
Water Precision |
Error≤ 2% |
Error≤2% |
|
Mixing Motor (kw) |
4 kw |
5.5 |
|
Lifting Motor (kw) |
4 kw |
4.5 |
|
Pump Motor (kw) |
0.55 KW |
0.75 |
|
Max. Towing Speed (km/h) |
20 |
20 |
|
Tire Size |
6.50-16 |
6.50-16 |
|
Dimensions (L*W*Hmm) |
2260×1990×2750 |
2766×2140×3000 |
|
Total Weight (kg) |
1300 |
1950
|
