JZC500 Lifting Concrete Mixer

JZC500 Lifting Concrete Mixer

BrandHua Ning
Power19.6kw
Weight4000kg
Dimension(L*w*h)5520×2300×5800mm
24-Hour Online Service
Global Service Network
Technical Solutions

Specifications

Brief Introduction

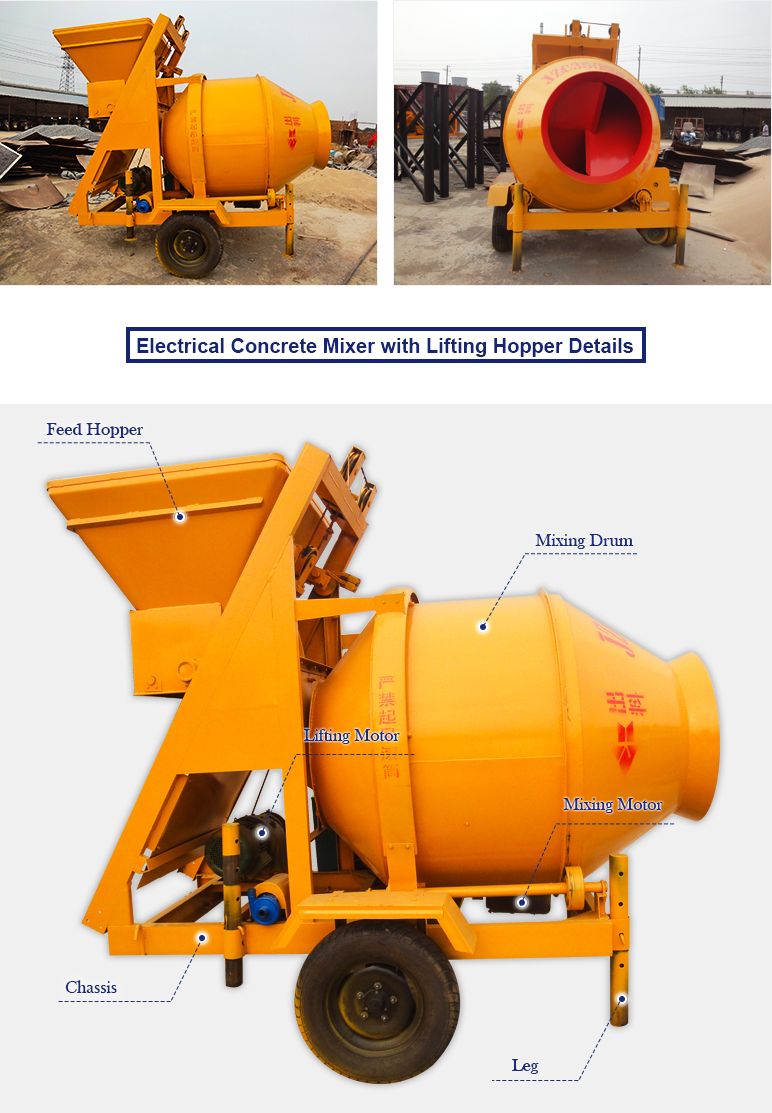

JZC500 lifting concrete mixer is a self-falling concrete mixer which is a double-cone type mixing drum forward mixing and reverse discharging. It can mix plastic and semi-dry concrete.The mixing drum of the machine is rotated by the ring gear.

Applications
Applicable to general construction sites, roads, bridges, hydropower projects and small and medium concrete component factories.

Advantages
1.Reliable transmission, low noise, low energy consumption, compact structure, stable operation, simple operation, good mixing quality and high productivity.
2.Long service life of blades and scaleboard.
3.Hopper lifting way:Orbital lifting.

Technical

Model JZC350 JZC500
Discharge Capacity (L) 350 500
Feeding Capacity (L) 560 800
Productivity (m3/h) 10-14 20-25
Rotation Speed (r/min) 14 13
Max. Aggregate Size (mm) 60 60-80
Water Precision Error≤2% Error≤2%
Mixing Motor (kw) 5.5 11
Lifting Motor (kw) 4.5 7.5
Pump Motor (kw) 0.75 1.1
Max. Towing Speed (km/h) 20 20
Tire Size 6.50-16 7.50-16
Dimensions (L*W*Hmm) 2766*2140*3000 5520×2300×5800
Total Weight (kg) 1950 4000
