Six Cubic Meters(6m³) Concrete Truck

Six Cubic Meters(6m³) Concrete Truck

Brand华凝
Power130
Weight
Dimension(L*w*h)
24-Hour Online Service
Global Service Network
Technical Solutions

Specifications

Overview:
Beiqi Futian Motor Company Limited is the most comprehensive and large-scale commercial vehicle enterprise in China, and it is also the best small agricultural truck manufacturer with the best reputation among consumers.

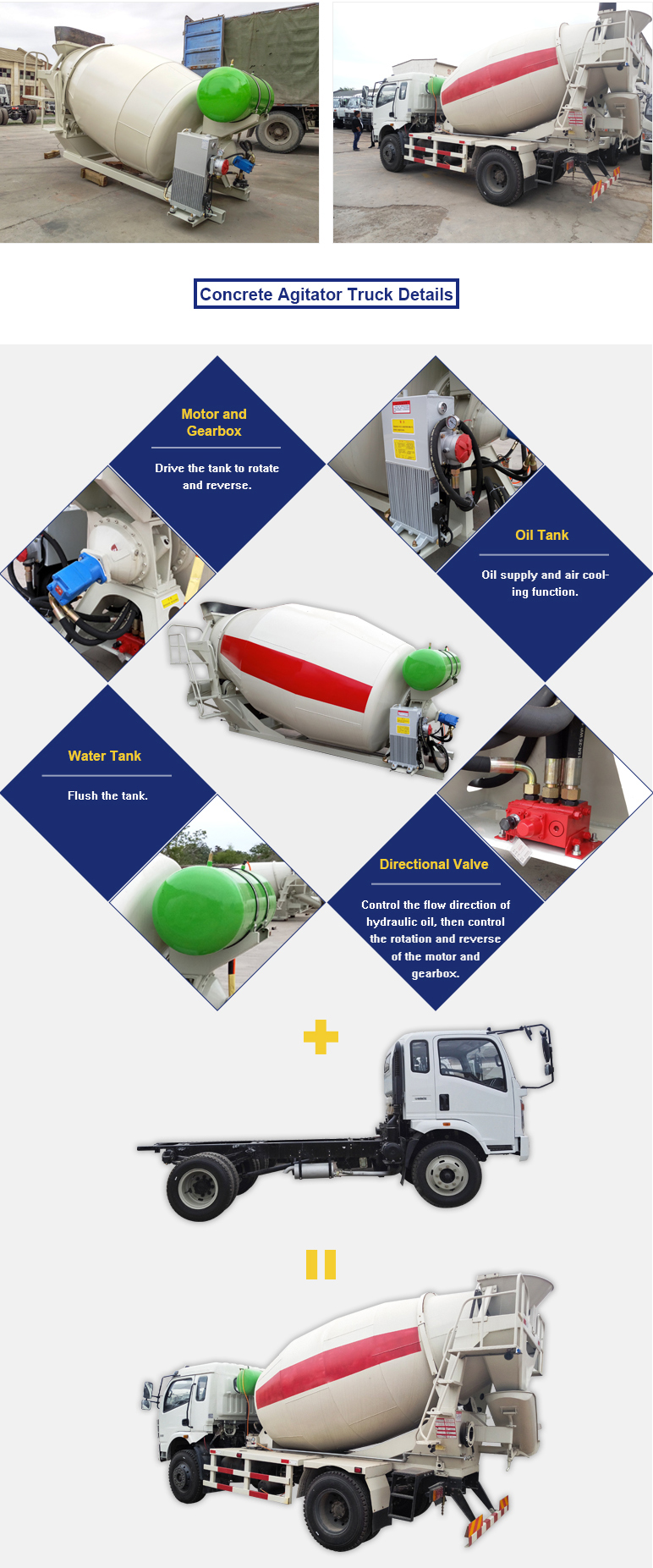

Concrete truck can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate and stone.
Features:
  • Superior performance with the mixing tank.
  • Simple operation and useful application.
  • Unique space spiral blade can improve mixing efficiency.
  • Convenient and efficient air pressure water supply cleans the part thoroughly.
  • Multi-points control system enables the concrete truck operation to be easier, safer and more comfortable.

Technical

Technical:
Type 6m3  Mixing Transport Tank
Geometry capacity(m3) 9.6
Effective mixing capacity(m3) 6
Tank diameter(m) 2.05
Axis tilt 14°
Dimensions(L×W×H) 4935×2050×2365 mm
Installation size(mm) 800×3900
Speed(r/min) 0-10
Water box volume(L) 350;300;400


Type Fu Tian 6m3 Concrete Truck
Power(HP) 130
Emission standard National stage Ⅳ
Urea tank Yes
Crossbeam(mm) Double-250
Gearbox 5
Rear axle(mm) 1092
Tyre size 825R20
Tread(mm) 2250
Wheelbase(mm) 3600
Braking Air brake  ABS
Fastest speed(km/h) 80
Dimensions(L×W×H) 6825×2300×3450 mm
