Specifications
Overview:
Beiqi Futian Motor Company Limited is the most comprehensive and large-scale commercial vehicle enterprise in China, and it is also the best small agricultural truck manufacturer with the best reputation among consumers.

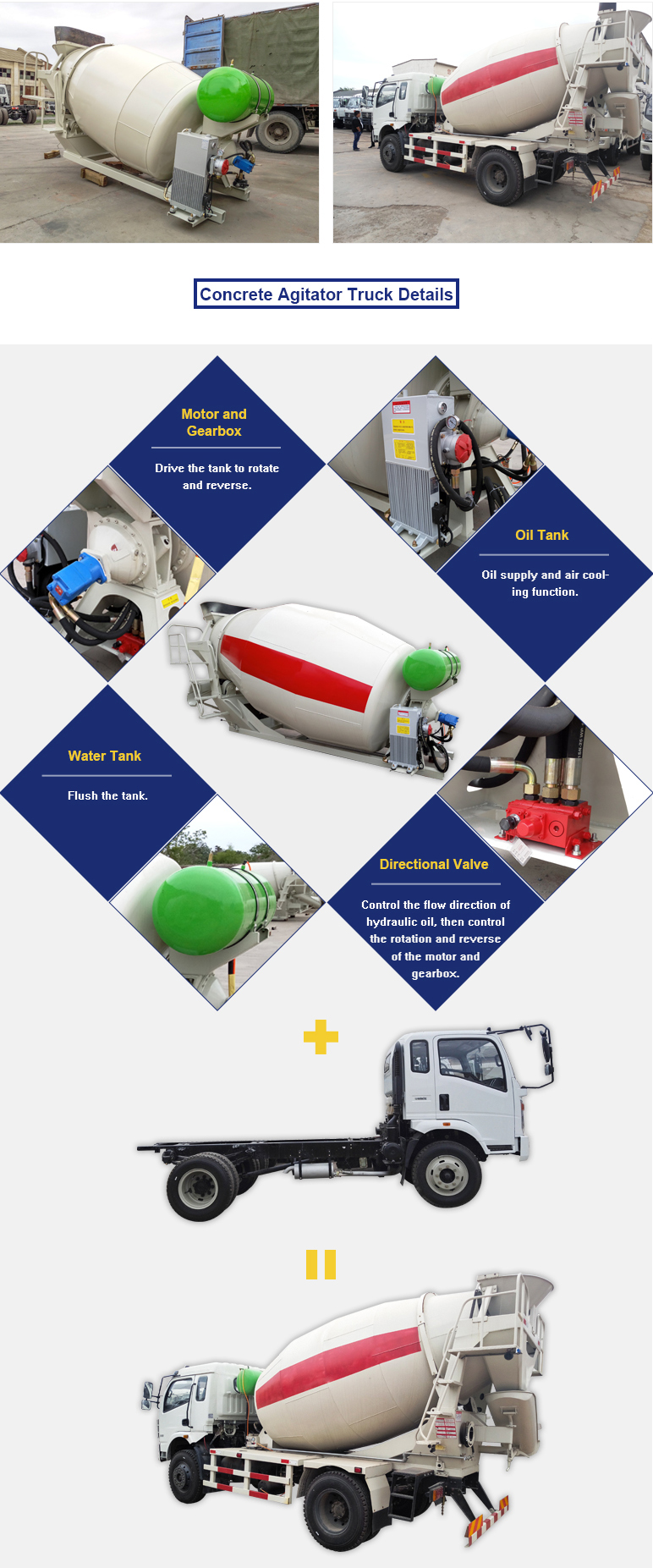

Concrete truck can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate and stone.
Features:
-
Small and convenient.
-
Saving time and labor.
-
Superior performance with the mixing tank.
-
Simple operation and useful application.
-
Multi-points control system enables the concrete truck operation to be easier, safer and more comfortable.
Technical
Technical:
Type |
4m3 Mixing Transport Tank |
Geometry capacity(m3) |
6.1 |
Effective mixing capacity(m3) |
4 |
Tank diameter(m) |
1.75 |
Axis tilt |
16° |
Dimensions(L×W×H) |
4345×1750×2215 mm |
Installation size(mm) |
800×3400 |
Speed(r/min) |
0-10 |
Water box volume(L) |
350;300;400 |
Type |
Fu Tian 4m3 Concrete Truck |
Power(HP) |
120 |
Emission standard |
National stage Ⅳ |
Urea tank |
Yes |
Crossbeam(mm) |
250 |
Gearbox |
5 |
Rear axle(mm) |
1092 |
Tyre size |
825R20 |
Tread(mm) |
2250 |
Wheelbase(mm) |
3400 |
Braking |
Air brake ABS |
Fastest speed(km/h) |
80 |
Dimensions(L×W×H) |
6460×2300×3450 mm |
