Specifications
Brief Introduction:

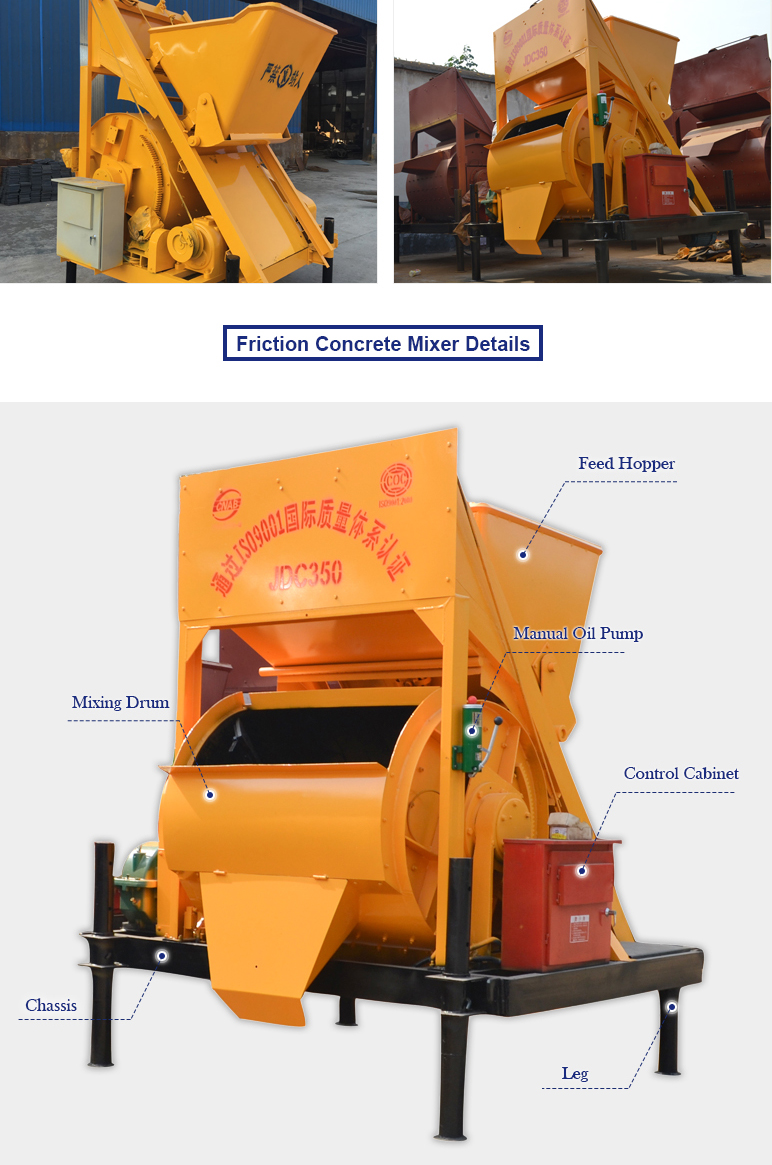

JDC350 Concrete Mixer can mix various mix of plastic concrete, dry rigid concrete, lightweight aggregate concrete and various mortar.
The mixing system is driven by cylindrical gears, and the drive is very reliable. Feeding mechanism adopts lifting motor with high safety.
The concrete mixer can work together with the batching machine to form a small mixing plant.
JDC concrete mixer is ideal for a variety of construction sites, small and medium construction projects, precast concrete factories.
Advantages:
1. Final products are discharged much quickly and cleanly
2. Power-driven discharge
3. High mixing quality; easy maintenance
4. Long service life of liner and blades
5. Easy to control, easy to move
6. Wide applications, high production efficiency, low energy consumption, low noise, reasonable structure, convenient operation, etc.
Technical
|
Model |
JDC350 |
JDC500 |
|
Discharge Capacity (L) |
350 |
500 |
|
Feeding Capacity (L) |
560 |
800 |
|
Theoretical Productivity (m3/h) |
15-20 |
20-30 |
|
Max. aggregate Size: Pebble/Gravel (mm) |
40/60 |
60/80 |
|
Mixing Motor Power (kw) |
15 |
18.5 |
|
Lifting Motor Power (kw) |
4.5 |
5.5 |
|
Discharge Motor Power (kw) |
4 |
4 |
|
Pump Motor Power (kw) |
0.75 |
1.1 |
|
Hopper Lifting Speed (m/min) |
18 |
18 |
|
Dimensions (L×W×H) (mm) |
4150×2700×3150 |
4330×2700×5000 |
|
Weight (kg) |
3000 |
3700 |
