Specifications
Brief Introduction

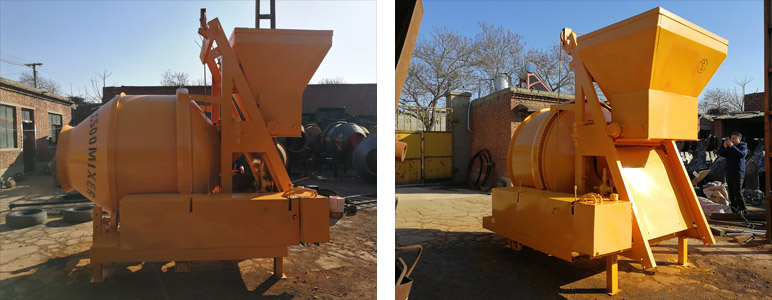

JZC-500DH mobile hydraulic diesel concrete mixer is a self-falling concrete mixer which is a double-cone type mixing drum forward mixing and reverse discharging. It can mix plastic and semi-dry concrete.The mixing drum of the machine is rotated by the ring gear. It has a hydraulic feeding systerm. It is the best mixer for various non-electric supply areas and construction sites where it is not convenient to pull power lines.
Applications
Applicable to general construction sites, roads, bridges, hydropower projects and small and medium concrete component factories.
Advantages
1.Can not only use diesel, but also work with electricity.
2.Can be easily disassembled and transported.
3.Hopper lifting way: Hydralic
4.Reliable transmission, low noise, low energy consumption, compact structure, stable operation, simple operation, good mixing quality and high productivity.
Technical
|
Model |
|
JZC500-DH |
|
Discharging Capacity |
|
500L |
|
Loading Capacity |
|
800L |
|
Productivity |
|
20-25m3/h |
|
Maximum Size of Aggregate |
|
60-80mm |
|
Diesel Engine Power |
|
15/18hp |
|
Power of Water Pump |
|
2.2-3kw |
|
Hopper Lifting |
|
By hydraulic system |
|
Accuracy of Water Supply |
|
Error≤2% |
|
Max Trailing Speed |
|
20 km/h |
|
Tyre Size |
|
7.00-16 |
|
Speed of Mixing Drum |
|
13-15 RPM |
|
Dimensions in Container (L×W×H) |
|
2300×3300×2500 mm |
|
Overall Weight |
|
2200kg |
