JZC350-DR Diesel Concrete Mixer

JZC350-DR Diesel Concrete Mixer

BrandHua Ning
Power15hp
Weight1980kg
Dimension(L*w*h)2766x2140x3000 mm
24-Hour Online Service
Global Service Network
Technical Solutions

Specifications

Brief Introduction

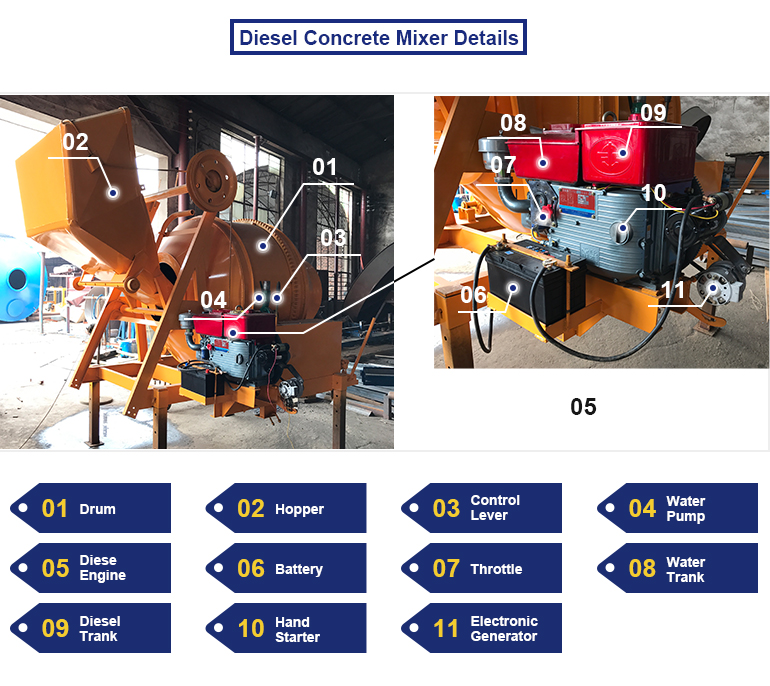

JZC350-DR mobile diesel concrete mixer is a self-falling concrete mixer which is a double-cone type mixing drum forward mixing and reverse discharging. It can mix plastic and semi-dry concrete.The mixing drum of the machine is rotated by the ring gear.Huaning diesel concrete mixer can not only use diesel, but also work with electricity! It is the best mixer for various non-electric supply areas and construction sites where it is not convenient to pull power lines.

Applications
Applicable to general construction sites, roads, bridges, hydropower projects and small and medium concrete component factories.


Adavantages
1. Can not only use diesel, but also work with electricity.
2. Can be easily disassembled and transported.
3. Reliable transmission, low noise, low energy consumption, compact structure, stable operation, simple operation, good mixing quality and high productivity.
4. Hopper lifting way:Tipper feeding.

Technical

Model JZC300-DR JZC350-DR
Discharging Capacity 300L 350 L
Feeding Capacity 480L 560 L
Productivity 6-8 m3/h 10-14 m3/h
Rotation Speed 17 r/min 14 r/min
Max. Aggregate Size 60-80 mm 60-80 mm
Water Precision Error ≤ 2% Error ≤ 2%
Diesel Engine 12 Horsepower 15 Horsepower
Max. Towing Speed 20 km/h 20 km/h
Tire Size 6.50-16 6.50-16
Overall Dimension 2260x1990x2750 mm 2766x2140x3000 mm
Weight 1300 kg 1980 kg
