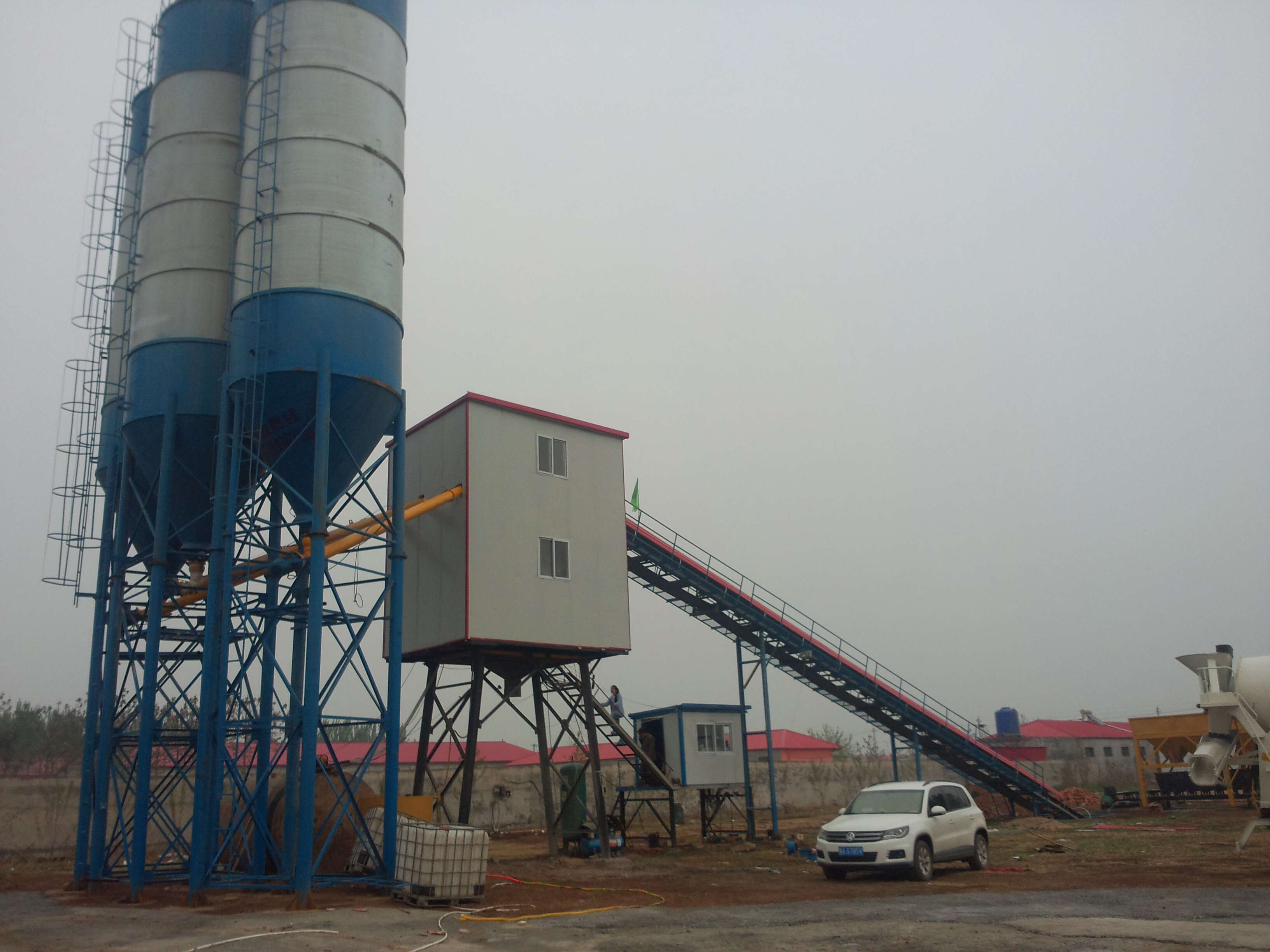

HZS60concrete mixing plant equipped with JS1000 concrete mixer

Apr 28, 2020

Maximum Productivity: 60 m3/h;
Discharge Height: 3.8 m;
Main Machine: JS1000 twin-shaft forced concrete mixer
Batching Machine: PLD1600 with the weighing hopper capacity reaching 1600 L.


HZS60 concrete mixing plant includes the cement silo, screw conveyor, PLD batching machine, twin-shaft forced concrete mixing machine, computer controlling and measuring system, etc. And also there are manual control system, automatic head-drop compensation and aggregate moisture compensation. It can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on. Working as the concrete mixing equipment, it can meet the requirements for different forms and specifications.


Features:
Low investment
Land-saving
Easy maintenance
Fewer equipments are involved
Independent control room can also be utilized to make the equipment operation more convenient and safe


Model HZS50 HZS60 HZS75
The Whole Station Max. Productivity 50 m3/h 60 m3/h 75 m3/h
Discharge Height 1.5-3.8 m 3.8 m 3.8 m
Working Cycle 72 s 60 s 60 s
Dimension (LxWxH) 15922x13500x17750 mm 28445x10595x18707 mm 24350x10595x18704 mm
Power 90 kw 105 kw 120 kw
Concrete Mixer JS1000 JS1000 JS1500
Batching Machine PLD1600 PLD1600 PLD2400
Pneumatic system Air Compressor Model 1.5-7 1.5-7 1.8-7
Nominal Displacement 1.67 m3/min 1.67 m3/min 1.67 m3/min
Rated Discharge Pressure 0.8 mpa 0.8 mpa 0.8 mpa
Motor power 7.5 kw 7.5 kw 11 kw
Measurement Accuracy of Weighing system Aggregate ±2% ±2% ±2%
Cement ±1% ±1% ±1%
Water ±1% ±1% ±1%
Admixture ±1% ±1% ±1%
