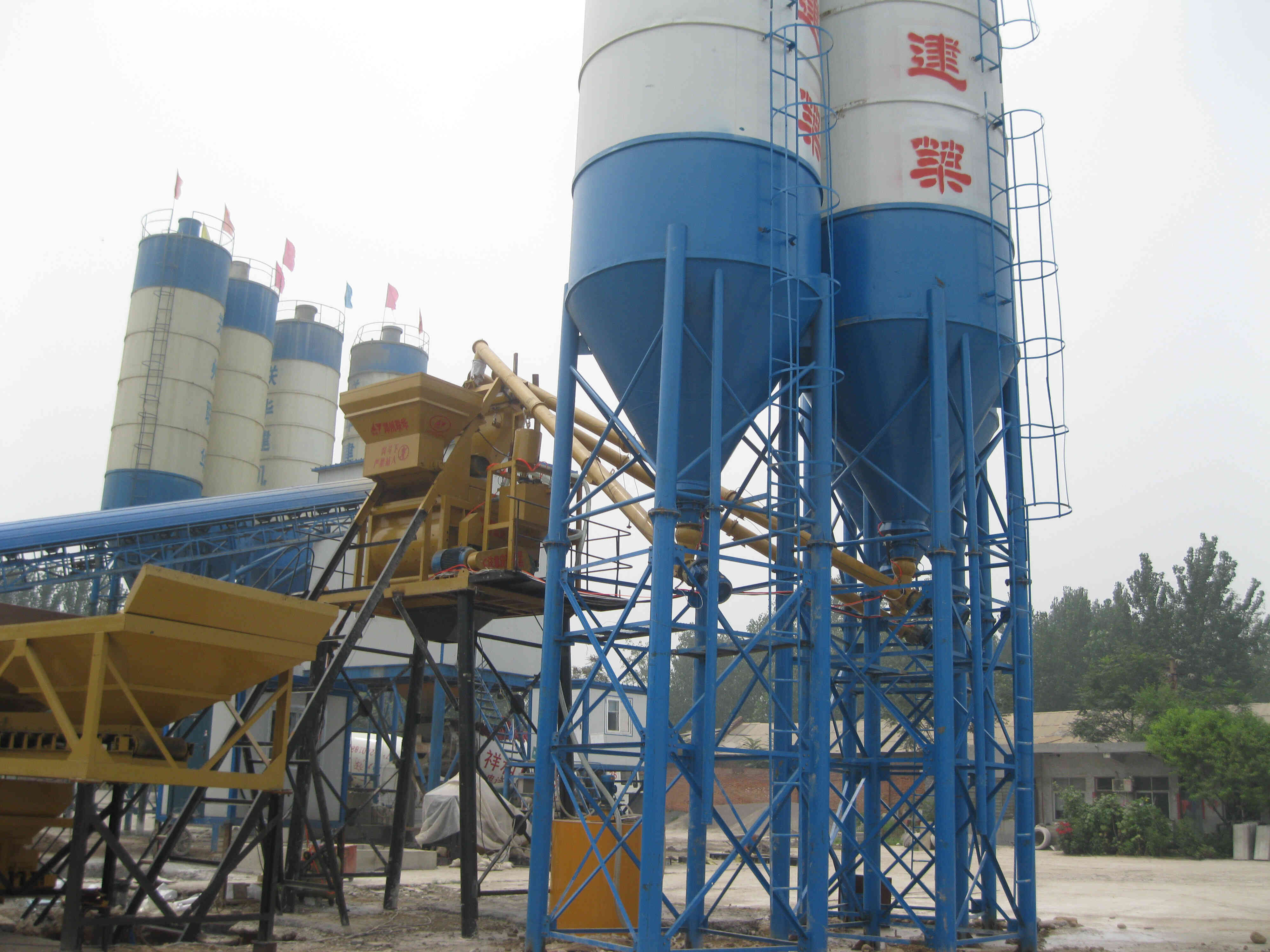

HZS50 concrete mixing plant equipped with JS1000 concrete mixer

Apr 28, 2020
Machine: JS1000 forced mixer
Batching Machine: PLD1600
Screw Conveyor: LSY219

HZS50 concrete mixing plant is composed of feeding system, measuring (weighing) system, mixing system, electrical system and auxiliary equipments (such as air compressor, water pump etc.), featured by high-precision computer control. And also there are manual control system, automatic head-drop compensation and aggregate moisture compensation. It can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on. Working as the concrete mixing equipment, it can meet the requirements for different forms and specifications.

Features:
Newly-designed: one batching machine supplies materials for two mixers simultaneously
Low investment
Land-savingTheoretical productivity: 50 m3/h
Mixing
Equipments involved are fewer
High-efficiency concrete with high quality is obtained on the premise of accurate measurement of the batching machine.
The cycle operation of batching machine and mixing machine is ideal for bridge construction, large and middle concrete plants.


Parameters:
Model HZS35 HZS50 HZS60
The Whole Station Max. Productivity 35 m3/h 50 m3/h 60 m3/h
Discharge Height 1.5-3.8 m 1.5-3.8 m 3.8 m
Working Cycle 72 s 72 s 60 s
Dimension (LxWxH) 12922x13000x17245 mm 15922x13500x17750 mm 28445x10595x18707 mm
Power 75 kw 90 kw 105 kw
Concrete Mixer JS750 JS1000 JS1000
Batching Machine PLD1200 PLD1600 PLD1600
Pneumatic system Air Compressor Model 1.0-7 1.5-7 1.5-7
Nominal Displacement 1.67 m3/min 1.67 m3/min 1.67 m3/min
Rated Discharge Pressure 0.8 mpa 0.8 mpa 0.8 mpa
Motor power 5.5 kw 7.5 kw 7.5 kw
Measurement Accuracy of Weighing system Aggregate ±2% ±2% ±2%
Cement ±1% ±1% ±1%
Water ±1% ±1% ±1%
Admixture ±1% ±1% ±1%
