HZS25 station equipped with JS500 mixer parameters

Mar 25, 2020

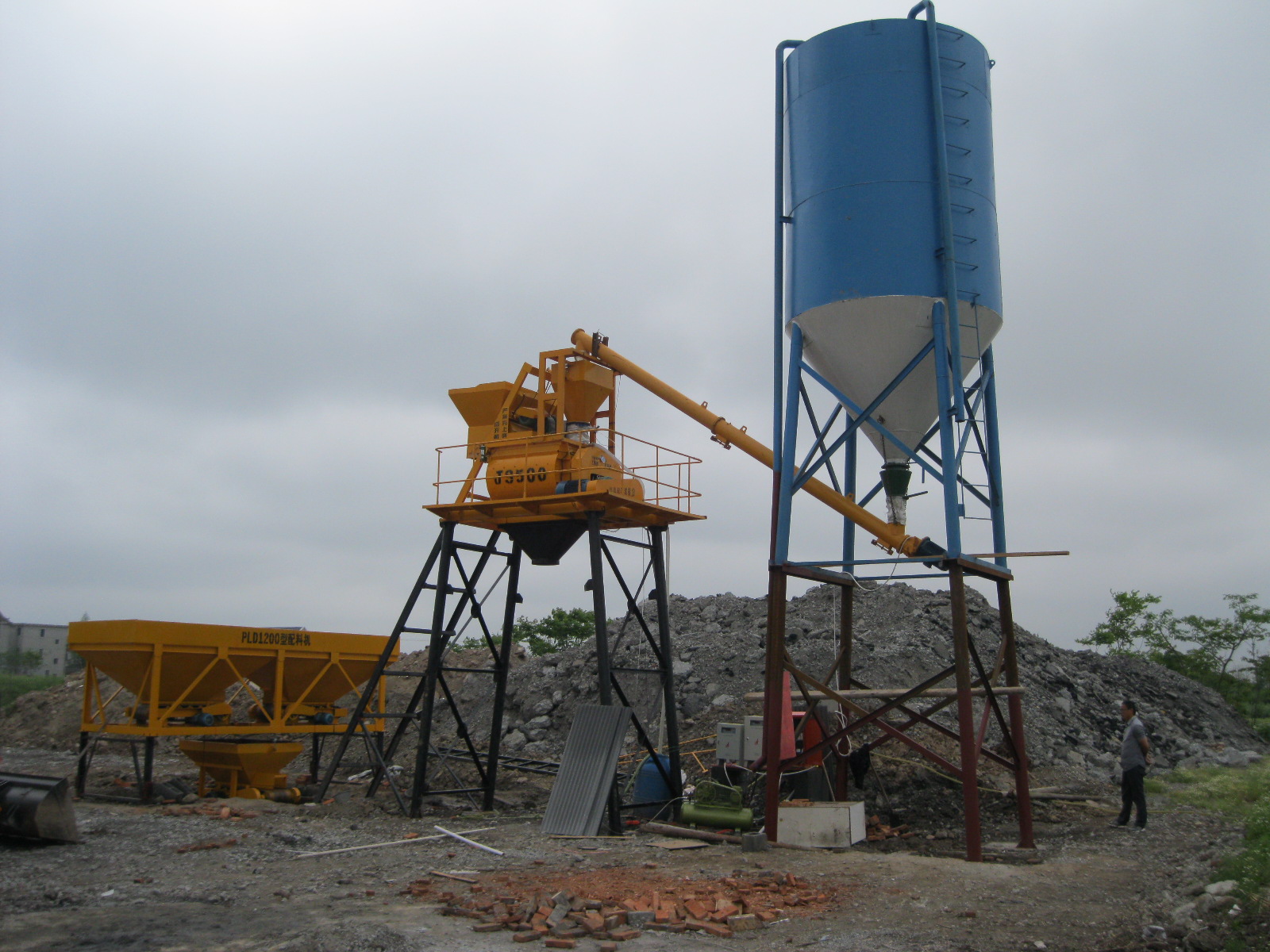

    HZS25 concrete mixing plant flexibly consists of twin-shaft forced mixer, batching machine, and other related equipment. Its main machine JS500
shows a great advantage: it not only can work independently, but also can work together with PLD batching machine to form the simple concrete mixing
plant with the productivity reaching 25 m3/h (that is, HZS25). Besides, HZS25 can fully present the advantages of both the mixing machine and the batching
machine. Generally, this high-efficiency mixing plant is used to mix dry rigid concrete, lightweight aggregate concrete, and various mortar.

Applications:
All kinds of large, middle, and prefabricated concrete plants; Industrial and civil building work: such as highways, bridge project, water conservancy, wharf, etc.


Features:
Automatic feeding
Simple structure and operation
Easy to dismantle


Parameters:
Model HZS25 HZS35 HZS50
The Whole Station Max. Productivity 25 m3/h 35 m3/h 50 m3/h
Discharge Height 1.5-3.8 m 1.5-3.8 m 1.5-3.8 m
Working Cycle 72 s 72 s 72 s
Dimension (LxWxH) 11693x13060x17245 mm 12922x13000x17245 mm 15922x13500x17750 mm
Power 50.25 kw 75 kw 90 kw
Concrete Mixer JS500 JS750 JS1000
Batching Machine PLD800 PLD1200 PLD1600
Pneumatic system Air Compressor Model 1.0-7 1.0-7 1.5-7
Nominal Displacement 1.67 m3/min 1.67 m3/min 1.67 m3/min
Rated Discharge Pressure 0.8 mpa 0.8 mpa 0.8 mpa
Motor power 5.5 kw 5.5 kw 7.5 kw
Measurement Accuracy of Weighing system Aggregate ±2% ±2% ±2%
Cement ±1% ±1% ±1%
Water ±1% ±1% ±1%
Admixture ±1% ±1% ±1%
