JW Series Pan Concrete Mixer

JW Series Pan Concrete Mixer

BrandHua Ning
Power5.5kw
Weight500kg
Dimension(L*w*h)Φ1200*1400mm
24-Hour Online Service
Global Service Network
Technical Solutions

Specifications

Overview

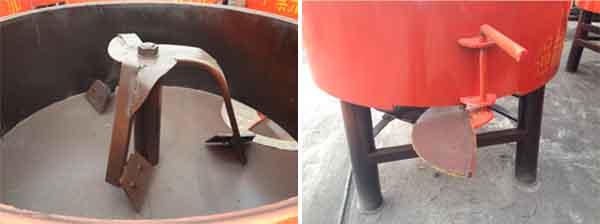

JW series Concrete Mixer (also called Vertical Concrete Mixer) is forced mixing machine and the mixing drum is driven by gear ring.
The Pan Concrete Mixer from Manufacturer is frequently used to mix plastic, dry rigid concrete, fluid concrete, lightweight aggregate concrete and various mortar. It discharges concrete by rotating anticlockwise, while it mixes the materials by rotating clockwise.
Main models of the Hino Concrete Mixer include: JW350,JW500, etc. JW mixer can also work together with the batching machine to form small and medium size concrete mixing plant.






Applications
Highways, power station, dam construction, building sites, roads, bridge, water-power projects, large and middle prefabricated concrete mixing plants.

Features
Final concrete is discharged rapidly and completely
Easy maintenance, with attractive appearance
Stable operation, low energy consumption
Compact structure, reliable drive
Light weight

Technical

Model JW350 JW500
Discharge Capacity 350L 500L
Rotation Speed (r/min) 35 35
Power (KW) 5.5 7.5
Overall Dimension (MM) (Diameter*Height) Φ1200*1400 Φ1500*1400
