Automatic Dry Mortar Production Line

Automatic Dry Mortar Production Line

BrandHua Ning
Power--
Weight--
Dimension(L*w*h)--
24-Hour Online Service
Global Service Network
Technical Solutions
Specifications Technical Date Message

Specifications

DESCRIPTION
As a new type green construction material, dry mortar is generalized and applied by national compulsory policy. Relying on 20 years experience in manufacturing mixing plant and absorbing most mature European technology, DIHAI researched and developed DH dry mortar mixing plant, this product is popular in the global market.
We provide complete plant for dry mix mortars technology for producing ORDINARY MORTARS and SPECIAL MORTARS.

WORKING PRINCIPLE:

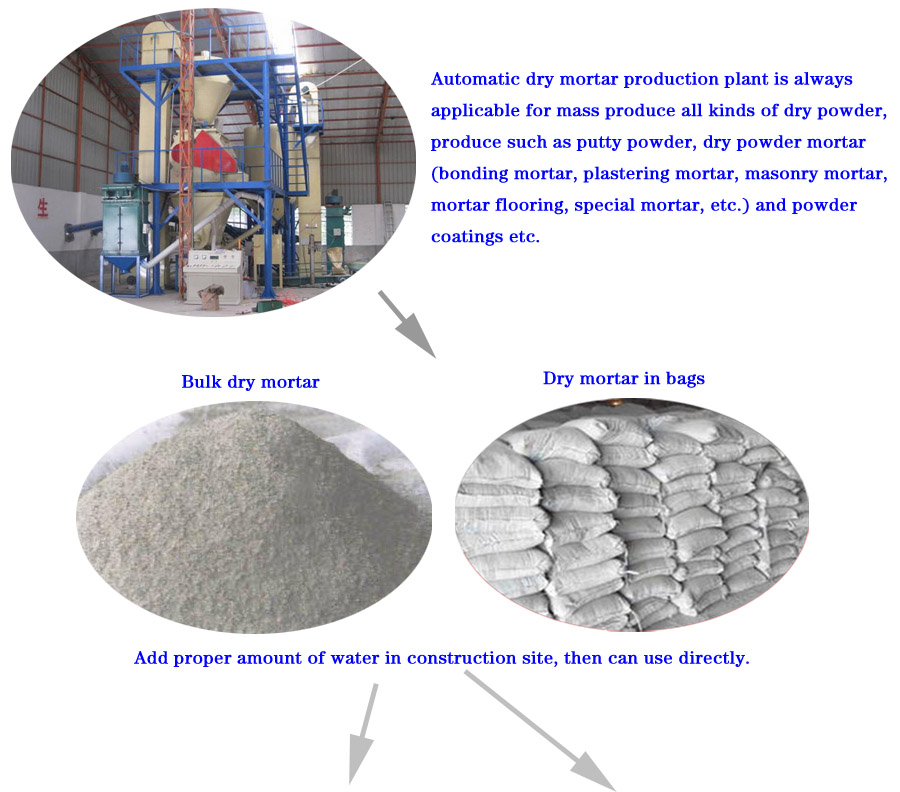

Dry mix mortar production line: First the raw material is put into the feed hopper according to mixture ratio, and then, through the action of control system, the equipment can realize automatic feeding, automatic mixing and automatic rationing and packaging.
Furthermore, the equipment adopts high-efficiency biaxial agravic mixer as its main mixing system. Requiring little investment and small area but with good efficiency, it shall be an ideal one for small and medium-sized company.

APPLICATION:
Dry mortar is also called pre-mixed mortar, which made in the factory by precise batching and uniform mixing. It can be used directly just by adding water in construction site. It has different properties though adding different additives.
1. Bonding Mortar
Masonry mortar, wall(ceramic) and floor tile adhesive mortar etc
2. Decoration Mortar
Decorative plaster, inner and outer wall putty, colorful decoration mortar etc
3. Protection Mortar
Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew-proof mortar etc.

Technical

Model Capacity Area Height Note
Semi-automatic 8-10t/h 80-100m² 8-12m Without premix hopper, Including PLC, Valve packing machine and DH2000 mixer.
Semi-automatic 10-15t/h 80-120 m² 12-15m Including premix hopper, PLC, Valve packing machine and DH2000 mixer
Semi-automatic 15-20t/h 120-150 m² 13-16m Including premix hopper, PLC, Valve packing machine and DH4000 mixer.
Automatic 25-30t/h 150-200 m² 15-20m Automatic batching of additives, Including premix hopper, PLC, Valve packing machine and DH4000 mixer.
