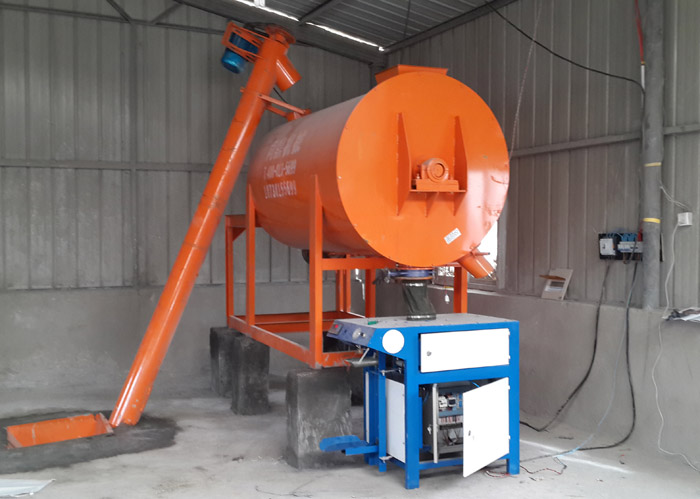

Spiral Ribbon Dry Mortar Mixer

Spiral Ribbon Dry Mortar Mixer

BrandHua Ning
Power4kw-15kw
Weight250-2400kg
Dimension(L*w*h)--
24-Hour Online Service
Global Service Network
Technical Solutions

Specifications

Description
GLHL spiral ribbon dry mortar mixer through high-speed rotating of stirring shaft, make internal and external spiral flipping materials in a wide range, internal helix transmitting the material from center to sides, the external spiral gathering the material from sides to center to form convection mix. outside screw gathering the material from sides to center, and part of the material along the axial radial motion to form convection mix and achieve all-round no dead angle depth mixture, so as to fast and uniformly mixing the material in a relatively short period of time.



Application:
It's always applicable for mixing kindaof dry materials,such as putty powder, dry powder mortar (bonding mortar, plastering mortar, masonry mortar, mortar flooring, special mortar, etc.) and powder coatings etc..

Features:
1. widely used in the mixed powder, granular, flake, block, such as materials in the feed, food, chemical, fertilizer , construction and other industries.
2. Specially –designed discharger has big door-opening angle an quick discharging with less residue.
3. Sealing system has good tightness, ensuring no products leakage.
4.Users can choose carbon steels and stainless steels.

Technical

Type

GLHL300

GLHL500

GLHL1000

GLHL2000

GLHL3000

Output (T/batch)

0.3

0.5

1

2

3

Mixing Cycle time per batch

3-5mins

3-5mins

3-5mins

3-5mins

3-5mins

Mixer Cylinder Volume (m3)



0.83

1.65

2.48

4

Motor Power (kw)

4

5.5

7.5

11

15

Rotate speed(r/min)

24

24

24

24

24

Mixer Cylinder diameter (mm)

680

840

1050

1200

1400

Mixer Cylinder Length(m)

1.2

1.5

1.9

2.2

2.6

Reducer

--

Cycloidal

Cycloidal

Gearbox

Gearbox

--

XWD5

XWD7

ZQ400

ZQ400

Mixer Overall Size(m)

(LxWxH)

2.35*0.7*1.6

2.8x0.95x1.8

3.25x1.07x2.1

3.1x1.3x2.3

3.7x1.5x2.5

Weight (kg)

250

1000

1300

2200

2400

Floor area needed (m2)

2

2.52

3.63

4.38

6
